Belly up skid plate

**kjp** · 11-09-2012 12:44 AM

Hiya all, just signed into the forum tonight - so thought I'd start a post. Can anyone provide some experiences or even hearsay on a good belly up system. I've been told Undercoverfab make good products, but thought I'd ask here what folks are using since it give me an excuse to introduce myself LOL.

Kevin

**dayriesw** · 12-06-2012 04:18 PM

I have seen the UCF skid on an lj in person. Preforms great. I have read about the Savvy UA aluminum skid working well also.

**bigwalton** · 12-21-2012 11:40 PM

x2 on hearing really good things on the Savvy skid. I want that and their big brake kit, they're "on the list"

**betsy** · 02-01-2013 05:15 PM

I have had 2 TJ's with AEV tummy-tucker skids,have had good luck with both,good quality also.

**Sam Deaver** · 03-19-2013 09:19 PM

I have a Teraflex tummy tuck and its been great! I guess as long as the skid takes a beating you are safe :)

**bigwalton** · 03-20-2013 02:24 PM

Before and after pictures would be cool to have for each, anyone got them?

**dayriesw** · 03-22-2013 09:34 AM

I have a clayton installed and am going to try to switch it out for a full UCF skid this weekend if the rain holds off.

**Sam Deaver** · 03-24-2013 05:32 PM

Here's a video of the one I have. http://www.youtube.com/watch?v=an6MOFH3qLk

**dayriesw** · 03-25-2013 12:39 PM

Originally Posted by dayriesw

I have a clayton installed and am going to try to switch it out for a full UCF skid this weekend if the rain holds off.

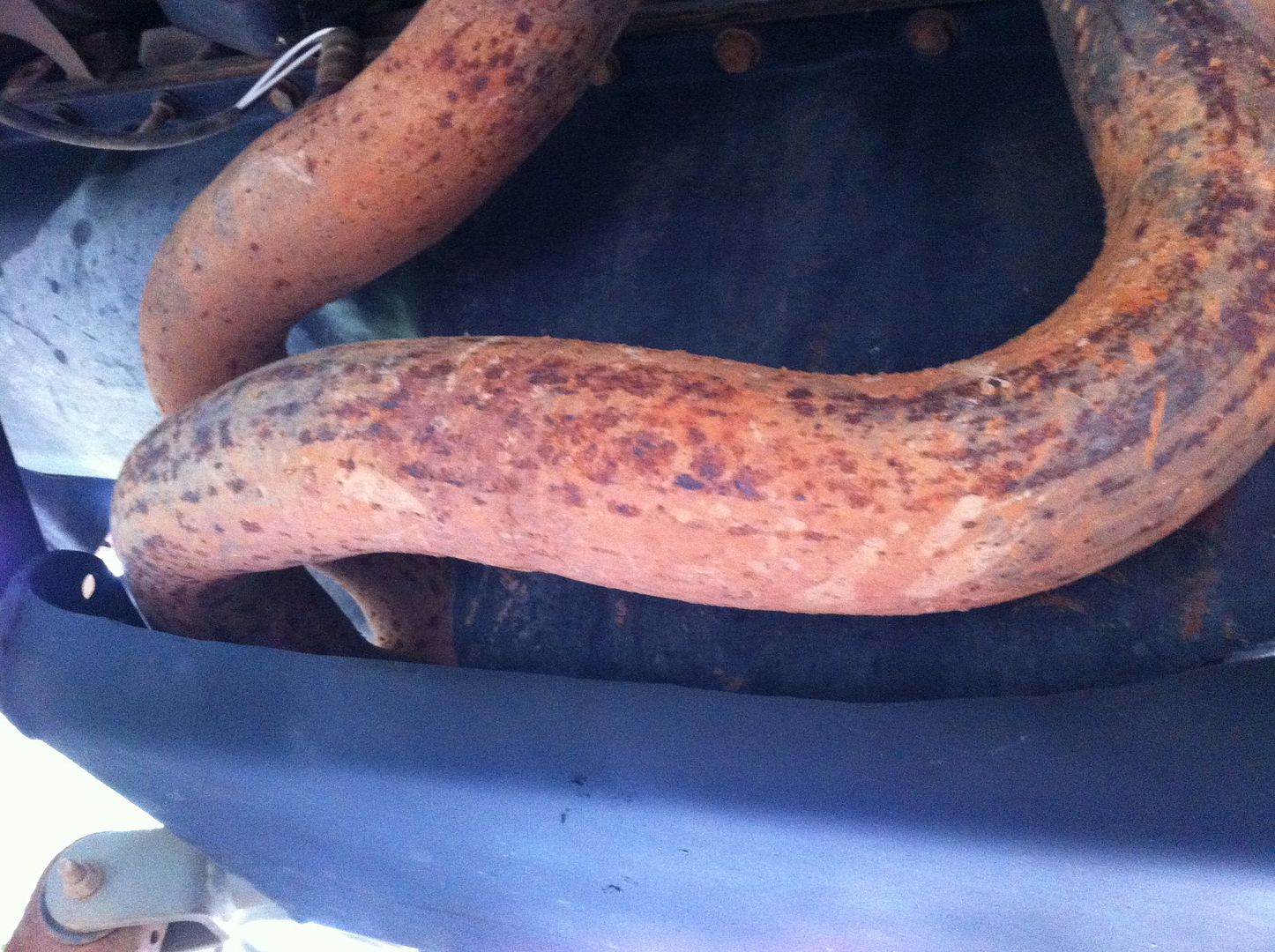

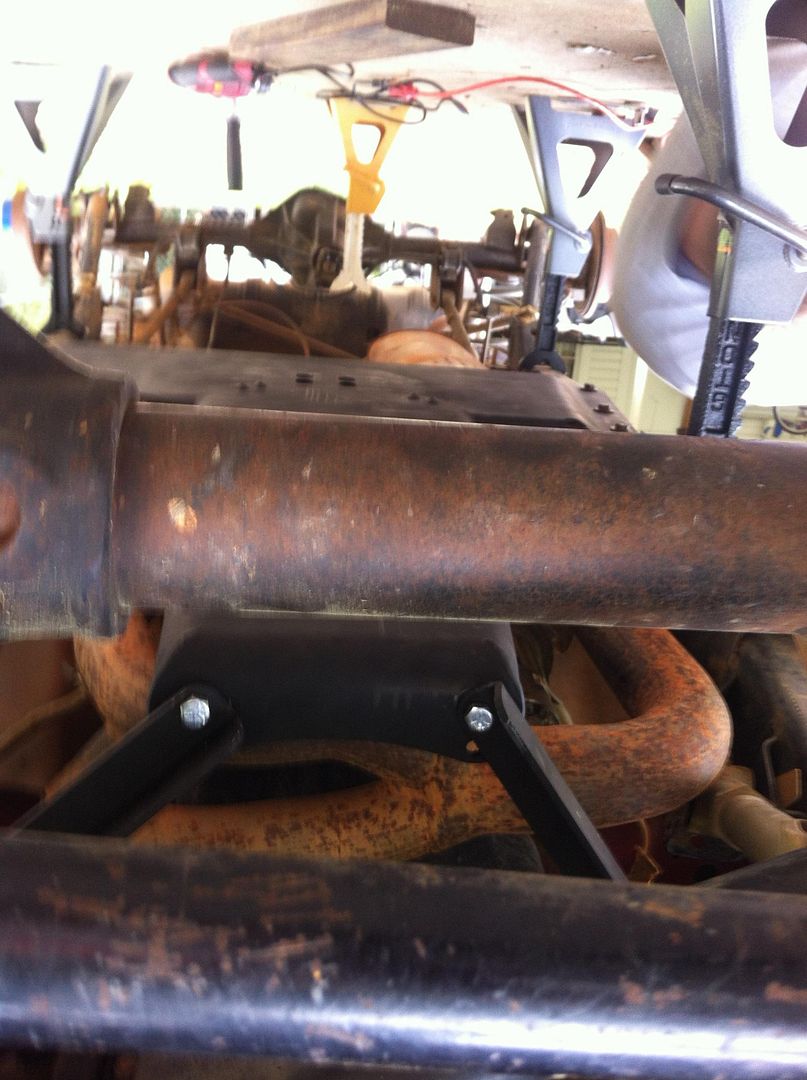

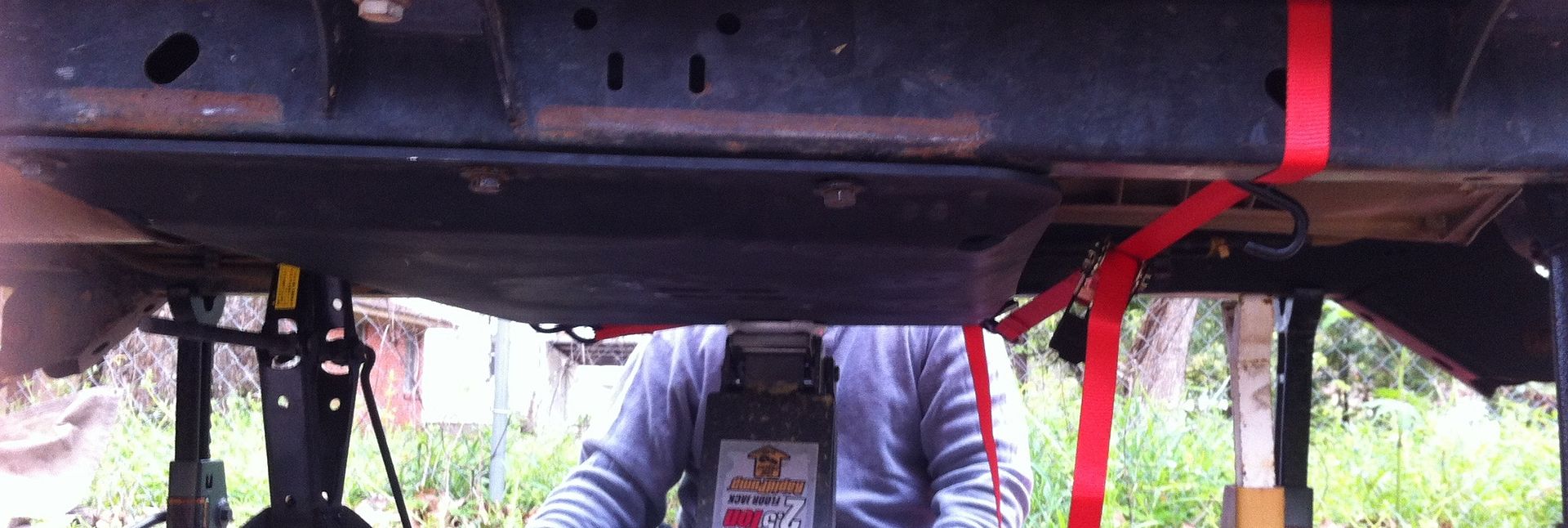

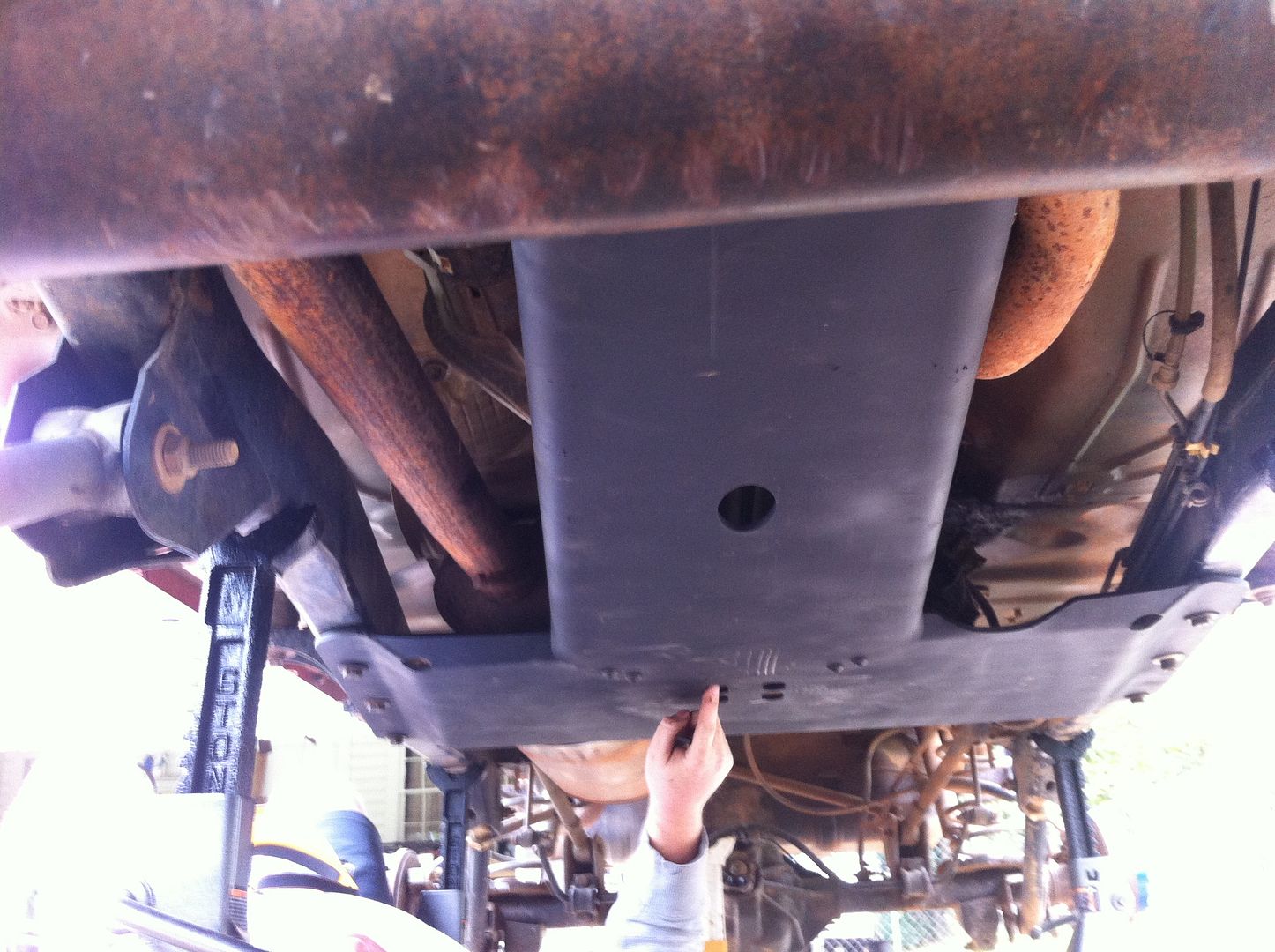

Well, I installed the UCF ultra flat skid with the lo pro mount. I already had the engine lift and BL. I still had to dent the tub pretty good under the driver's seat for the transfer case's front output side to fit and the exhaust hanger does need to be highly modified. I ended up not adding the exhaust hanger on the exhaust for you can't install the skid if so. I will have to shorten the hanger to fit. It took a buddy and I about 10 hours total to install with no directions including an engine skid too.

Also, had to modify the engine skid quite a bit to fit around my stock exhaust.

Only hangs down 1" below the frame

**kjp** · 03-27-2013 01:29 AM

Well, just coming back to this post after having started it 3 months ago - I did buy the UCF skidplate. Just got it installed last week and looking forward to testing it out in the next few months. Looks like a quality product, and I did the engine skid as well. Thanks for all the replies.
